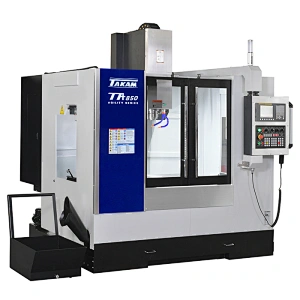

TA-850 Entry Level CNC Vertical Machine Center
TA-850 Entry Level CNC Vertical Machine Center

TA-850 Entry Level CNC Vertical Machine Center

Model NO.:
TA-850

Revolutionary Machine Body Design

  • The TA-850 vertical machine was desinged with the most advance FEM analysis software on the market. So we are able to test the vertical machine design under many different stressed conditions. With this confirmation we are sure the TA-850 is able to meet any customer requirement without any problem.

  • When structure is everthing the TA-850 CNC vertical machine center does not disappoint. With one of the widest stance in its class, the machine is more than capable of handling what ever cutting job that the industry or the customer have to offer.

Controller Choices

The Takam TA-Series CNC vertical machine center is designed to reach every market and every user. Not only focsuing on the education

sector, Xiamen takam machinery aims to use this machine to reach also any type of beginner cnc machinery users with a wide variety of

controller choices, so each machine is customized to customer habits.

Umbrella Type 16 Tools

Umbrella Type 20 Tools

Arm Type 24 Tools

Since the TA-Series cnc vertical machine center is the entroductory level machine into the market, we have several choices for

the customers to choose from. We have separated this out from our standard machine specifications so the customers can

have the maximum selection on the items they would need on their machines and work piece.

model
subject
TA-850
Work table size (mm)1000*550
Machining area (mm)850*520
T Slot (mm)80*18*5
Max weight on work table (kg)400
X/Y/Z Axis travel (mm)800*550*550
Spindle nose to work table surface (mm)110-660
Spindle Center to Worktable (mm)520
Spindle taper BT40
Spindle RPM (rpm)8,000
Spindle delivery type Belt
Spindle motor (kw/hp)5.5
Axis motorMitsubishi(kw)1.5/1.5/3.0
Axis motorFanuc(kw)1.8/1.8/3.0
Cutting feed rateX/Y/Z Axis(mm/min)1-10,000
Rapid feed rateX/Y/Z Axis(m/min)36/36/36
(X/Y/Z Axis) Linear guideway35/35/35(Roller)
Position accuracy (mm)±0.015
Repeatability (mm)±0.008
Cooling pump (hp)3/4
Air requirement (kg/cm2)6
Voltage requirement (kva)15
Machine Weight (kw)4,000
Exterior sizeL×W×H(mm)2,300*2,640*2,780
