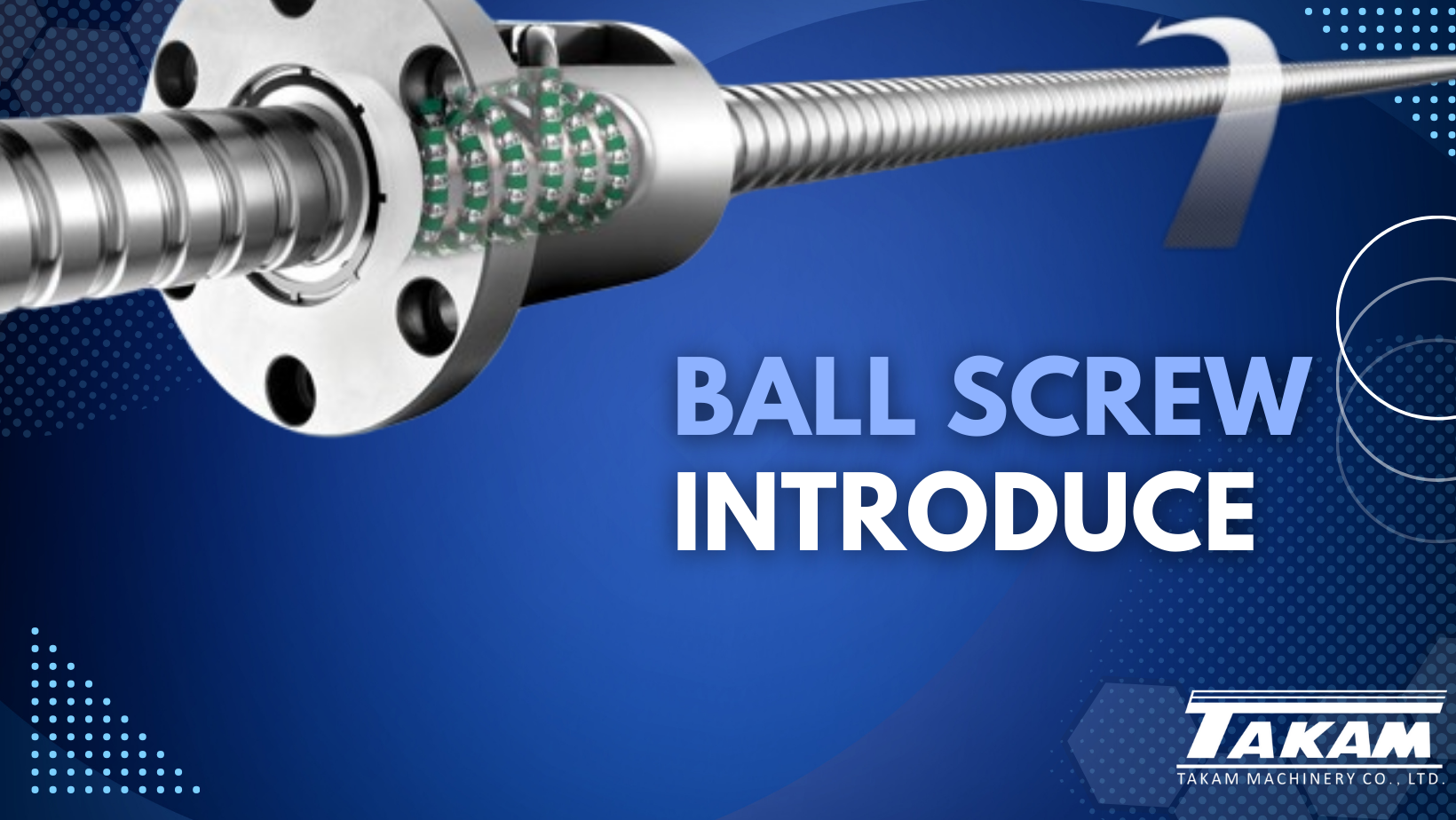

Ball Screw introduce

author: Takam

Ball Screw: What Is It? How Does It Work?

A ball screw is a mechanical linear motion device used to convert rotational motion into precise linear motion. It consists of a threaded shaft (screw) and a nut that contains small ball bearings. The ball bearings are recirculated within the nut and are held in place by the nut's internal raceways and the screw's external raceways. As the screw rotates, the ball bearings move along the helical raceways, causing the nut to move linearly along the screw's axis.

Ball screws are commonly used in various industrial applications where precise and efficient linear motion is required. Some of the key advantages of ball screws include:

High Efficiency: Ball screws are known for their high mechanical efficiency, often exceeding 90%. This means that a significant portion of the input rotational energy is converted into linear motion with minimal waste as friction and heat.

Precision: Ball screws offer excellent positioning accuracy and repeatability, making them suitable for applications where precise movement control is essential, such as CNC machines, robotics, and semiconductor manufacturing equipment.

Low Friction: The rolling contact between the ball bearings and the raceways reduces friction compared to traditional lead screws with sliding contact, resulting in smoother and more efficient motion.

Long Life: Ball screws are designed for durability and can provide a long service life, especially when properly lubricated and maintained.

Low Backlash: Backlash, or the play between the screw and the nut, is typically minimal in ball screw systems, contributing to their precision.

High Load Capacity: Ball screws can handle significant axial loads, both in compression and tension, making them suitable for applications requiring high force output.

Ball screws come in various designs and sizes to accommodate different requirements, including variations in lead (the distance the nut advances with one revolution of the screw) and accuracy grades. Choosing the right ball screw for a specific application involves considering factors like load capacity, speed, accuracy, and environmental conditions. Overall, ball screws are a crucial component in many industries, enabling precise and efficient linear motion in a wide range of machinery and equipment.
