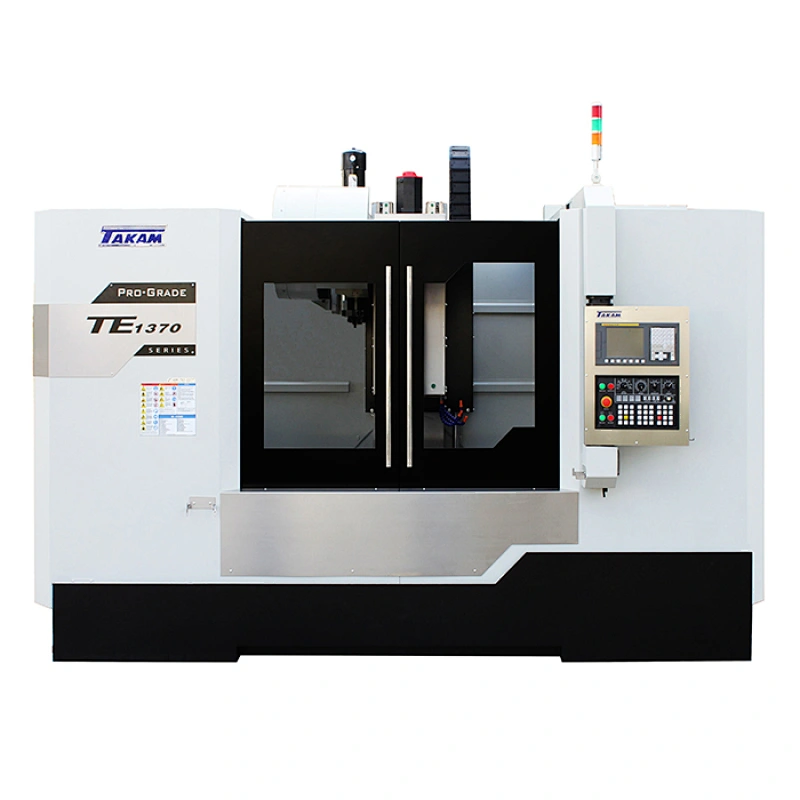

TE-1370 Multi Axis Vertical Machine Center
TE-1370 Multi Axis Vertical Machine Center
TE-1370 Multi Axis Vertical Machine Center

TE-1370 Multi Axis Vertical Machine Center

Model NO.
TE-1370
Quantity:

THE BRAND NEW TE-SERIES

Designed with efficiency and productivity in mind!

HIGH SPEED

LARGE WORK AREA

HIGH POWER

36m/min opt 48m/min

850 to 1300mm

15kw

Rapid Travel

Wortable Size

Spindle power

Extra Wide Column & Base

The TE-SERIES vertical machine center is designed with extra wide base and extrawide column, gives the machine structure stronger rigidity and when the machine is going under heavy duty machining it will give the machine longer life and more precision parts

High Precision Spindle

TE-Series vertical machine center uses the best spindle brands, for the TE-855 machine Takam use diameter 120mm spindle with standard ring splash funtion.

High Grade C3 Ball Screws and Linear Guideway

At Takam Machinery we only use world wide recongition brands such as HIWIN, PMI or THK to ensure the precision and durability of our machines, we believe in cooperation with the professionals. With all 45mm roller type linear guideways in all axis to ensure the rigidity and performance of the machine.

High Precision Bearing

All Takam machines uses high precision NSK bearings, we do not mix any local chinese brands into our production of the machine. With optional we can install SKF bearings also.

Various Options of Controller

Takam Machinery trys to satisfy all market customers, so we offer a wide range of brands of controller such as Mitsubishi, Fanuc, Siemens, Fagor and heidenhain.

Mitsubishi M80A/M80B

Fanuc 0I-MF

Siemens 808D/828D

model
subject
TE-1370
Work table size (mm)1,400*700
Machining area (mm)1,300*700
X/Y/Z Axis travel (mm)1,300*720*700
Spindle motor (kw/hp)15
Axis motorMitsubishi(kw)3/3/3
Axis motorFanuc(kw)3/3/3
Cutting feed rateX/Y/Z Axis(mm/min)1-10,000
Rapid feed rateX/Y/Z Axis(m/min)24/24/24
(X/Y/Z Axis) Linear guideway45/45/45(Roller)
Position accuracy (mm)±0.005
Repeatability (mm)±0.003
