                      model
subject
TL-36
X/Z Axis Travel(mm) 650*260
Swing Over Bed (mm) Φ400
Swing Over Size (mm) Φ120
Max Machining Diameter(axis) (mm) Φ35
Max Maching Length  (mm) 180
Rapid Traverse (X/Z Axis) (m/min) 24/24
Axis Servo motor X/Z Axis (kw) 1.5/1.5
Boring Tool Size (mm) Φ20(knife towerΦ25)

1.Takam Machines Quality tests include:

- Half complete 3-axis accuracy check

- Half complete 48 hours test run

- Complete 3-axis accuracy check

- Complete 48 hours test run

- 100% complete check

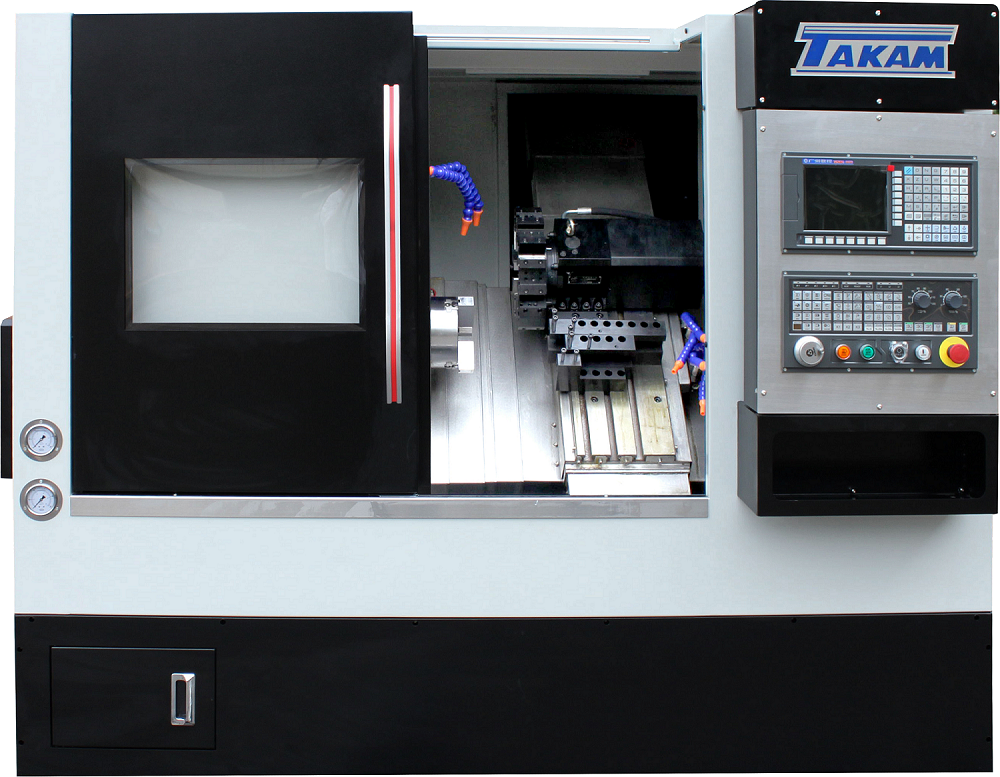

2.The Takam TL-Series CNC Lathe is standard with one-piece casting angling at 45° machine body to ensure the durability and performance of the machine.

3.The Takam TL-Series CNC Lathe standard with Collet.

Model NO.: TL-46
