ML-46 ML-280 ML-280E
X/Z Axis Travel(mm) 950*310 210*400 210/600
Swing Over Bed (mm) Φ400 Φ470 Φ470
Swing Over Size (mm) Φ120 Φ280 Φ280
Max Machining Diameter(axis) (mm) Φ42 Φ210 Φ210
Max Machine Length  (mm) 200 400 600
Rapid Traverse (X/Z Axis) (m/min) 30/30 24/24 24/24
Axis Servo motor X/Z Axis (kw) 1.5/1.5 1.8/1.8 1.8/1.8
Boring Tool Size (mm) Φ20(knife towerΦ25) Φ40 Φ40

1.Takam Machines Quality tests include:

- Half complete 3-axis accuracy check

- Half complete 48 hours test run

- Complete 3-axis accuracy check

- Complete 48 hours test run

- 100% complete check

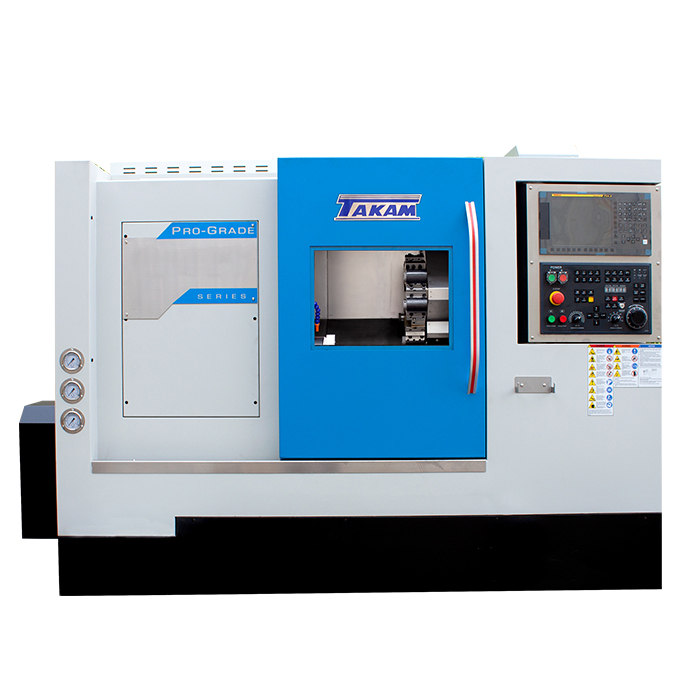

2.The Takam TL-Series CNC Lathe is standard with one-piece casting angling at 45° machine body to ensure the durability and performance of the machine.

3.The Takam TL-Series CNC Lathe standard with Collet.

Model NO.: ML-280
