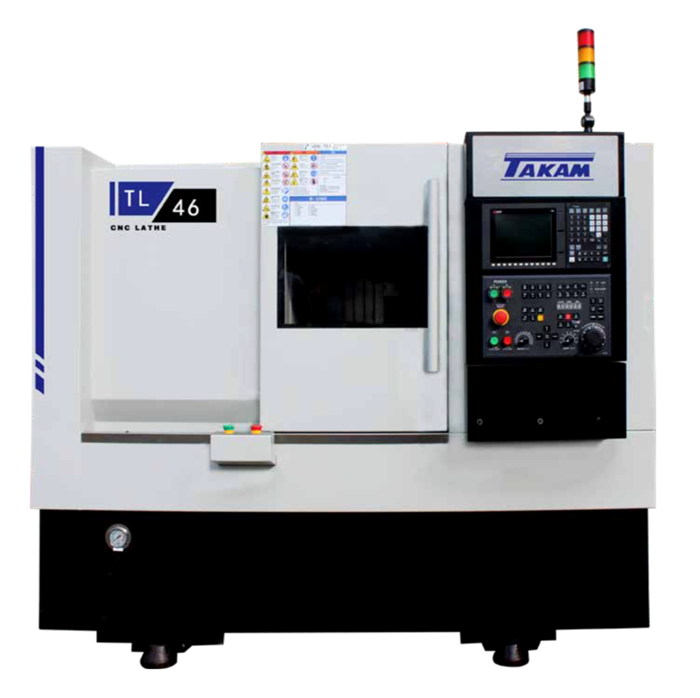

TL-46 High Performance Slant Bed CNC Lathe
TL-46 High Performance Slant Bed CNC Lathe

TL-46 High Performance Slant Bed CNC Lathe

Model NO.
TL-46
Quantity:

TAKAM CNC LATHE TL-SERIES

The TL-Series (CNC Lathe) is designed with a slant bed machine structure,when undergoing the machining process it can show the stability of the machine due to this structure of design. This design also enables the operator to be closer to the work piece and with long hours of operation it decreases the tiredness and increase productivity. This Lathe combine high horse power, high rigidity and rapid machining speciality to provide the user with high productivity machining ability.

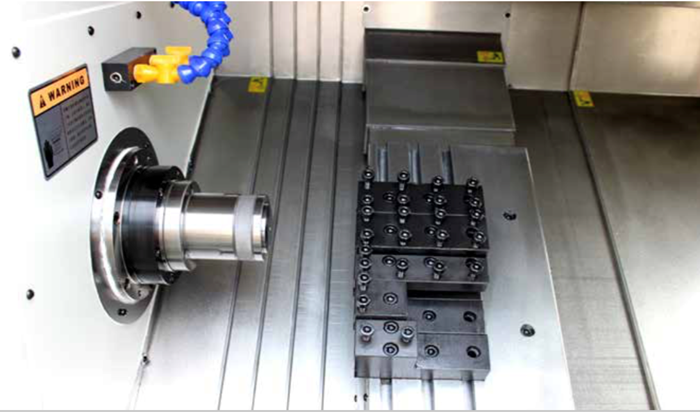

The turret with gang-type tooling device can eliminate the tool exchange time and improve the working efficiency.

The 45- degree inclined working bed is designed with rigid mechanical construction and easy chip removal. This design resolved the difficulty of the chip removal because of the combination of gang type and traditional turret.

This machine uses linear guideway which can reduce friction, resistance, and effects of temperature change during axial quick movement. Also, it can result in high precision of machined products and high capacity of machining output.

model
subject
TL-46
X/Z Axis Travel(mm)950*310
Swing Over Bed (mm)Φ400
Swing Over Size (mm)Φ120
Max Machining Diameter(disc) (mm)
Max Machining Diameter(axis) (mm)Φ42
Max Maching Length (mm)200
Distant Between Centres (mm)
Power Chunk Size (in)
Max Diameter Of Bar Bore (mm)Φ45
Diameter Of Spindle Bore (mm)Φ56
Spindle Head TypeA2-5
Spindle RPM (rpm)5,000
Spindle motor (kw/hp)5.5
Spindle Accuracy (mm)0.004
Rapid Traverse (X/Z Axis) (m/min)30/30
Axis Servo motor X/Z Axis(kw)1.5/1.5
Number Of Tools (units)gang tool/8
Position accuracy (mm)±0.005
Repeatability accuracy (mm)0.005
Turning Tool Size (mm)20*20
Boring Tool Size (mm)Φ20(knife towerΦ25)
Tailstock Travel (mm)
Quill Travel (mm)
Quill Diameter (mm)
Quill Taper (mt)
Quill Activation
Machine Weight (kg)2,000
Exterior size(L×W×H) (mm)2,100*1,380*1,930
