DBM-3030 Gantry Type Machine Center
DBM-3030 Gantry Type Machine Center

DBM-3030 Gantry Type Machine Center

Model NO.
DBM-3030
Quantity:

DBM - Series

Since 1989, Takam machinery has been providing solutions to every industrial need. With larger and faster-moving machines that currently are in high demand. Takam once again provide a soltuion to the problem. Introducing the DBM-Series the moving column machine center, this machine was created for the high speed machining requirements and needs that many top leading companies look for in a machine.

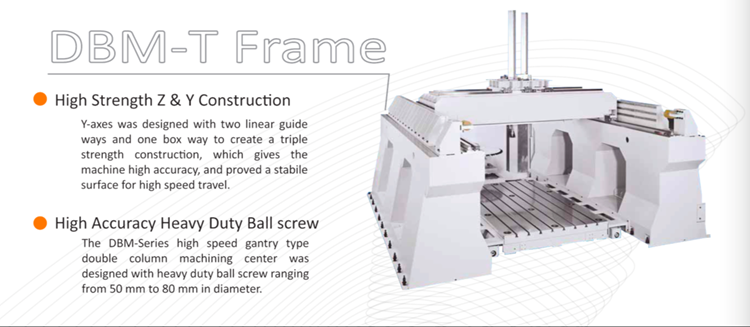

High Strength Z & Y Construction

Y-Axis was designed with two linear guide ways and one box way to create a triple strength construction, which gives the machine high accuracy, and proved a stable surface for high speed travel.

High Accuracy Heavy Duty Ball Screw

The DBM-Series high speed gantry type double column machining center was designed with heavy duty ball screw ranging from 50 mm to 80 mm in diameter.

Machine Data Specifications

model
subject
DBM-3030
X-Axis (mm)3,000
Y-Axis (mm)2,000-3,000
Z-Axis (mm)1,000
Spindle Nose to Work Table (mm)200-1,200
Bridge Width(Include Slash Cover,mm)2,300-3,300
Work table Length (mm)3,000
Work tableWidth (mm)2,800
Work table Max load (kg/㎡)2,500
Spindle Motor(Cont,per 30min) (kw(hp))22/26(30/35)
Spindle Speed (rpm)10-12,000
Spindle TaperBT40/HSK-63A
Tool Changer (NO.)32
Tool Max. Diameter (mm)127/215
