DBM-4030 Cnc Bridge Type Machining Center
DBM-4030 Cnc Bridge Type Machining Center
DBM-4030 Cnc Bridge Type Machining Center

DBM-4030 Cnc Bridge Type Machining Center

Model NO.:
DBM-4030
Quantity:

DBM - Series

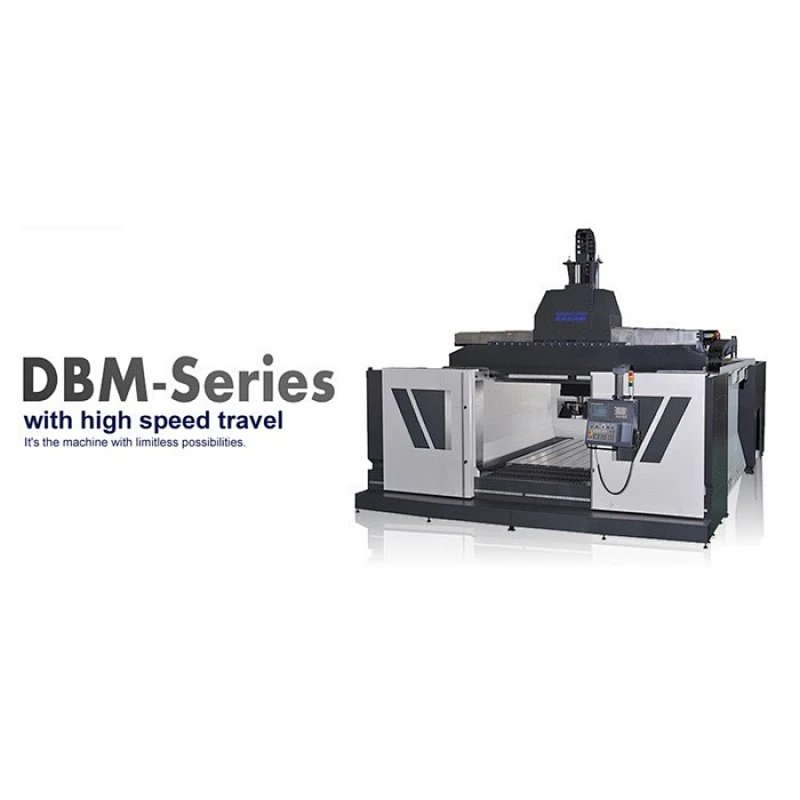

Since 1989, Takam machinery has been providing solutions to every industrial need. With larger and faster-moving machines that currently are in high demand. Takam once again provide a soltuion to the problem. Introducing the DBM-Series the moving column machine center, this machine was created for the high speed machining requirements and needs that many top leading companies look for in a machine.

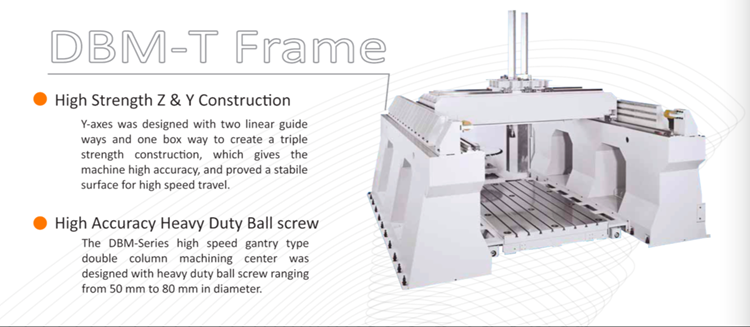

High Strength Z & Y Construction

Y-Axis was designed with two linear guide ways and one box way to create a triple strength construction, which gives the machine high accuracy, and proved a stable surface for high speed travel.

High Accuracy Heavy Duty Ball Screw

The DBM-Series high speed gantry type double column machining center was designed with heavy duty ball screw ranging from 50 mm to 80 mm in diameter.

model
subject
DBM-4030
X-Axis (mm)4,000
Y-Axis (mm)2,000-3,000
Z-Axis (mm)1,000
Spindle Nose to Work Table (mm)200-1,200
Bridge Width(Include Slash Cover,mm)2,300-3,300
Work table Length (mm)4,000
Work tableWidth (mm)2,800
Work table Max load (kg/㎡)2,500
Spindle Motor(Cont,per 30min) (kw(hp))22/26(30/35)
Spindle Speed (rpm)10-12,000
Spindle TaperBT40/HSK-63A
Tool Changer (NO.)32
Tool Max. Diameter (mm)127/215
