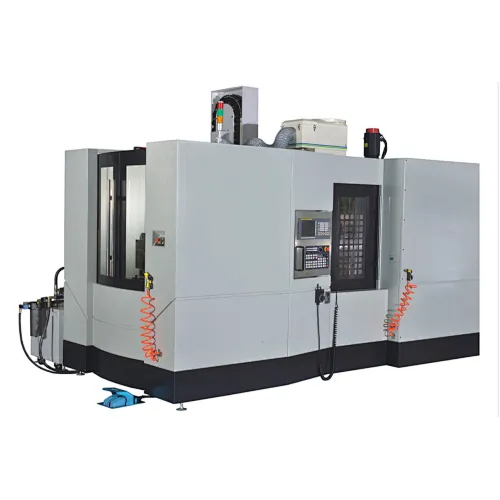

MBM-500 High Precision Horizontal Machine With Auto Pallet Table
MBM-500 High Precision Horizontal Machine With Auto Pallet Table

MBM-500 High Precision Horizontal Machine With Auto Pallet Table

Model NO.:
MBM-500

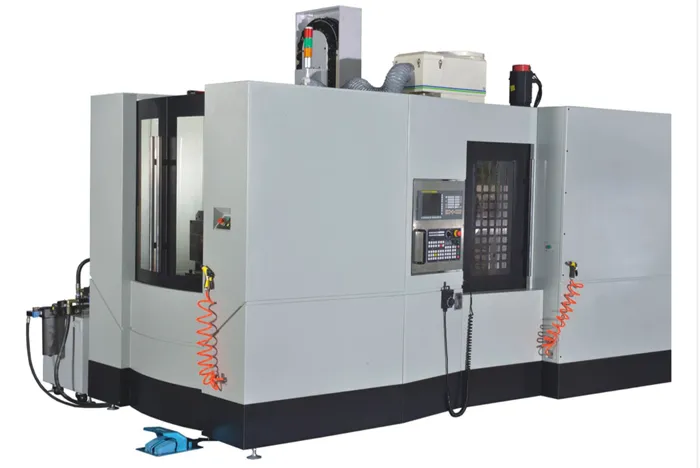

The MBM-Series - Precise High-Speed Horizontal Machine Center

This horizontal machine center is the perfect tool for precise, high speed, high production parts. The machine was designed with one thing in mind and that is high precision production. Equipped with 200+ N.m. high-speed spindle and high-speed rotary table changer at 8 sec per change. This machine outperforms machines within its class.

Horizontal Machine Center with Unparalleled Rigidity and Agility

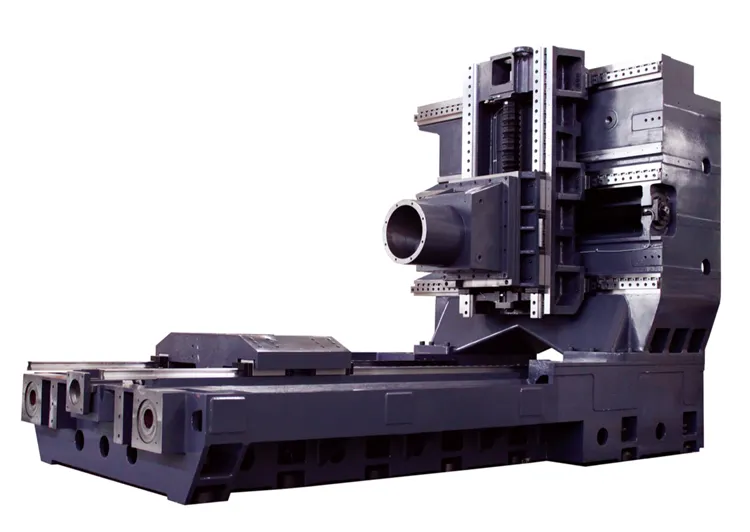

The MBM-500 was designed specifically for the use of high-speed spindle to offer outstanding performance in a heavy-duty cutting of large workpieces. Featuring a thick, robust bed and the largest spindle bearing inner diameter in its class. The MBM-500 achieve high rigidity and high accuracy required for heavy-duty cutting. With extended Z-axis strokes and better internal and external operability. The MBM-500 deliver unprecedented levels of productivity.

model
subject
MBM-500
TravelX-axis Travel (mm)700
Y-axis Travel (mm)700
Z-axis Travel (mm)700
Spindle Nose to Worktable (mm)100-800
Spindle Center to Worktable (mm)100-800
WorktablePallet Size (mm)500*500
Max Weight (kg)500
T-slot (mm)M16*24
Max Speed (rpm)22.2
Indexing Degree (sec)0.001
Pallet Changing Time (s)9
SpindleSpindle Speed (rpm)14,000
Spindle TaperHSK63
Max Torque (NM)233
Tool ChangerTool Capacity (T)24
Max Tool Weight (kg)8
Max Tool Length (mm)500
Max Tool diameter (mm)140
Tool Changer Time (s)1.8(T:T)
FeedrateRapid Feedrate(X/Y/Z) (m)60/60/60
Cutting Feedrate(X/Y/Z) (m)3/3/3
MotorSpindle Motor (kw)22/25
Three Axis Motor(X/Y/Z) (kw)5.5/14/9
AccuracyAccuracy0.008
Repeatability0.005
RequirementPressure (kg/cm2)6
Electricity (kva)80
OtherMachine Weight (T)15
Machine Exterior Size (mm)5,800*3,200*2,850
