Model NO.:
MBM-630

The MBM-Series - Precise High-Speed Horizontal Machine Center This horizontal machine center is the perfect tool for precise, high speed, high production parts. The machine was designed with one thing in mind and that is high precision production.

Equipped with 200+ N.m. high-speed spindle and high-speed rotary table changer at 8 sec per change. This machine outperforms machines within its class.

Horizontal Machine Center with Unparalleled Rigidity and Agility The MBM-500 was designed specifically for the use of high-speed spindle to offer outstanding performance in a heavy-duty cutting of large workpieces.

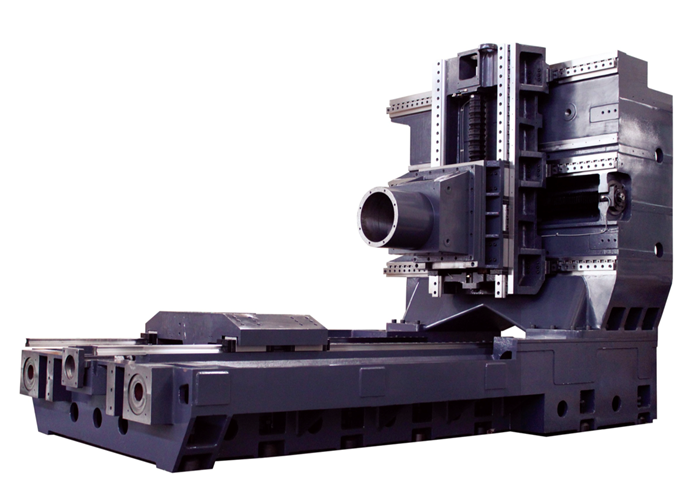

Featuring a thick, robust bed and the largest spindle bearing inner diameter in its class. The MBM-500 achieve high rigidity and high accuracy required for heavy-duty cutting. With extended Z-axis strokes and better internal and external operability. The MBM-500 deliver unprecedented levels of productivity.

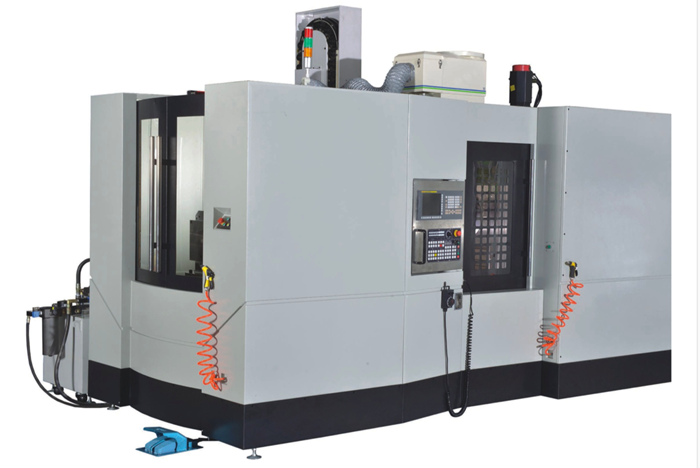

MBM-630 Pallet Changing horizontal machine center

model
subject
MBM-630
TravelX-axis Travel (mm)800
Y-axis Travel (mm)800
Z-axis Travel (mm)800
Spindle Nose to Worktable (mm)100-900
Spindle Center to Worktable (mm)100-950
WorktablePallet Size (mm)630*630
Max Weight (kg)1,200
T-slot (mm)M16*24
Max Speed (rpm)22.2
Indexing Degree (sec)0.001
Pallet Changing Time (s)22
SpindleSpindle Speed (rpm)14,000
Spindle TaperHSK63
Max Torque (NM)233
Tool ChangerTool Capacity (T)24
Max Tool Weight (kg)20
Max Tool Length (mm)500
Max Tool diameter (mm)140
Tool Changer Time (s)1.8(T:T)
FeedrateRapid Feedrate(X/Y/Z) (m)60/60/60
Cutting Feedrate(X/Y/Z) (m)3/3/3
MotorSpindle Motor (kw)22/25
Three Axis Motor(X/Y/Z) (kw)5.5/14/9
AccuracyAccuracy0.008
Repeatability0.005
RequirementPressure (kg/cm2)6
Electricity (kva)80
OtherMachine Weight (T)18.5
Machine Exterior Size (mm)5,800*3,200*2,850
