ML-280 CNC Lathe With Turret And Hydraulic Tail Stock
ML-280 CNC Lathe With Turret And Hydraulic Tail Stock

ML-280 CNC Lathe With Turret And Hydraulic Tail Stock

Model NO.
ML-280
Quantity:

The MOL-Series (CNC Lathe) is designed with a slant bed machine structure, when undergoing the machining process it can show the stability of the machine due to this structure of the design. This design also enables the operator to be closer to the workpiece and with long hours of operation it decreases the tiredness and increases productivity. This Lathe combines high horsepower, high rigidity, and rapid machining

specialty to provide the user with high productivity machining ability.

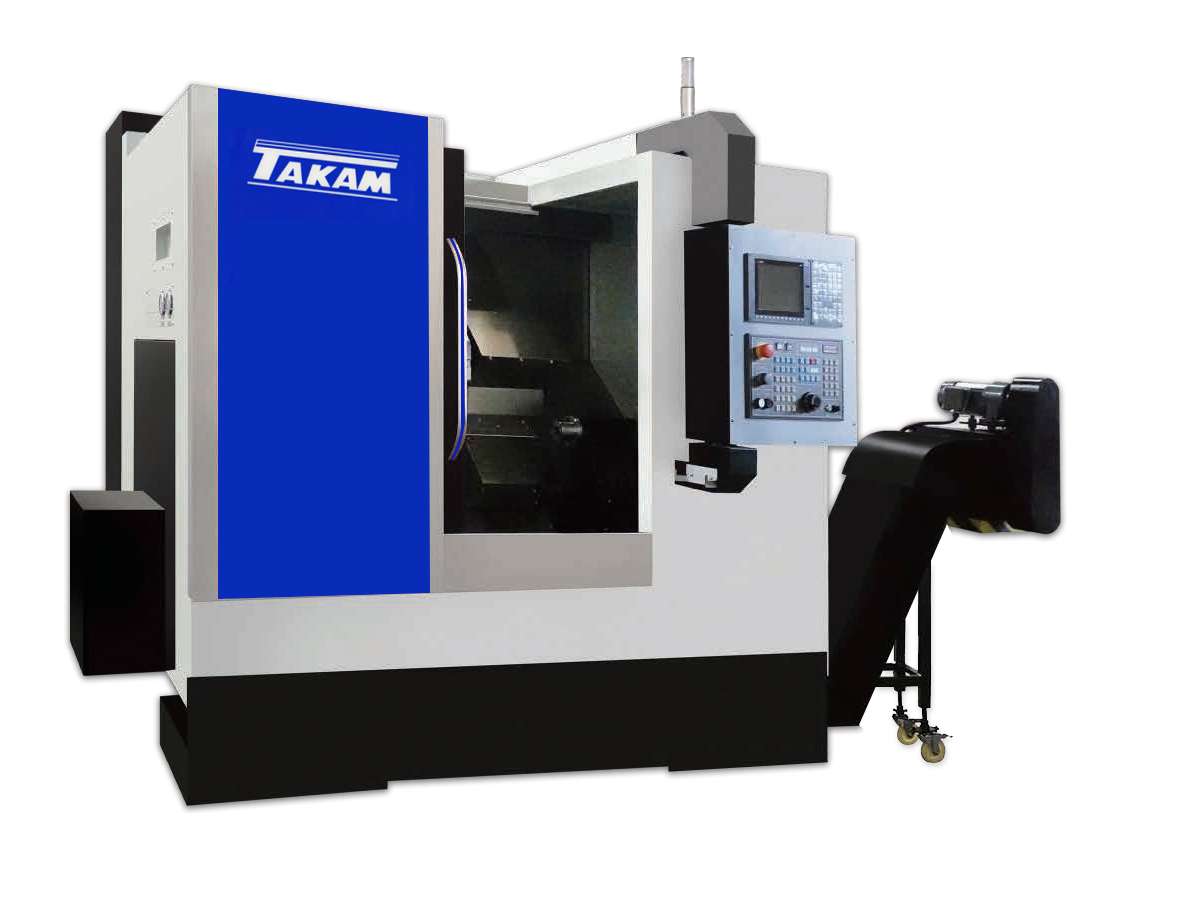

TAKAM CNC LATHE ML-SERIES

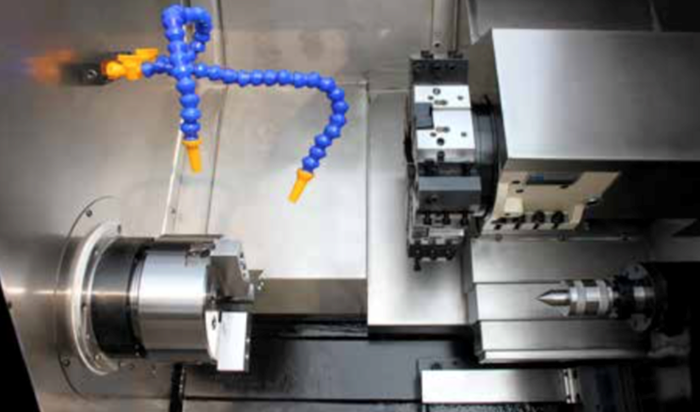

The turret with a gang-type tooling device can eliminate the tool exchange time and improve the working efficiency.

The 45- degree inclined working bed is designed with rigid mechanical construction and easy chip removal. This design resolved the difficulty of chip removal because of the combination of gang type and traditional turret.

This machine uses a linear guideway which can reduce friction, resistance, and effects of temperature change during axial quick movement. Also, it can result in high precision of machined products and a high capacity of machining output.

学科

尺寸

X / Z轴行程(mm)| X / Z Trave210/400
床台旋径 ( mm)|Swing Over Bedφ470
往复台上旋径 ( mm ) | Swing Over Sizeφ280
最大加工直径(盘类)( mm ) | Max Turning Diameter(disc)φ400
最大加工直径(轴类)( mm ) | Max Turning Diameter(axis)φ210
最大加工长度(mm)|Max Turning Length400
两心间距(mm)| Distance Between Centers 500
油压夹头尺寸(in)| Power Chuck Size8”
最大棒材通孔直径(mm)| Max. Diameter Of Bar Boreφ52
主轴贯通孔直径(mm)| Diameter Of Spindle Bore φ62
主轴头形式(ASA)| Spindle Head TypeA2-6
主轴转速(rpm)| Spindle RPM4000
主轴马力(kw)| Spindle Motor11
主轴精度(mm)| Spindle Accuracy0.003
X / Z轴快速位移(m/min)| X / Z axis Rapid Traverse20
X、Z轴电机功率(kw)| X / Z axis Servo Motor1.8/1.8
刀具数(units)| Number of tools8
定位精度±(mm)| Position Accuracy0.005
重复定位精度±(mm)| Repeatability0.003
车刀尺寸(mm)| Turning Tool Size25X25
镗刀尺寸(mm)| Boring Tool Sizeφ40
尾座行程(mm)| Tailstock Travel400
顶心行程(mm)| Quill Trave120
顶心直径(mm)| Quill Diameterφ75
顶心锥度(MT)| Quill TaperMT4
顶心驱动方式 | Quill Activation油压(Hydr. )
机床重量(KG)| Machine Weight(Little)3500
机床尺寸(mm)| Machine Size3700X1820X2140
