ML-350 CNC Lathe With Turret And Hydraulic Tail Stock
ML-350 CNC Lathe With Turret And Hydraulic Tail Stock

ML-350 CNC Lathe With Turret And Hydraulic Tail Stock

Model NO.
ML-350
Quantity:

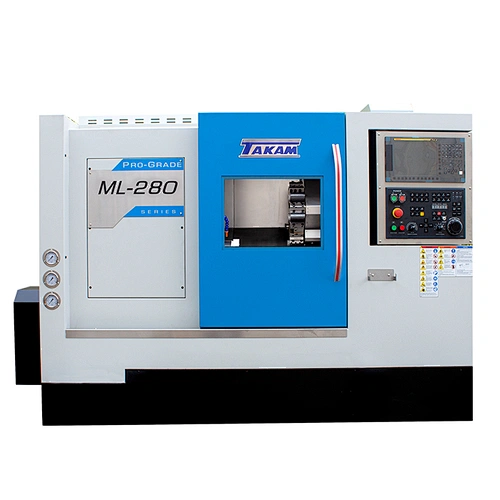

The MOL-Series (CNC Lathe) is designed with a slant bed machine structure, when undergoing the machining process it can show the stability of the machine due to this structure of the design. This design also enables the operator to be closer to the workpiece and with long hours of operation it decreases the tiredness and increases productivity. This Lathe combines high horsepower, high rigidity, and rapid machining

specialty to provide the user with high productivity machining ability.

车削中心

TAKAM CNC LATHE ML-SERIES

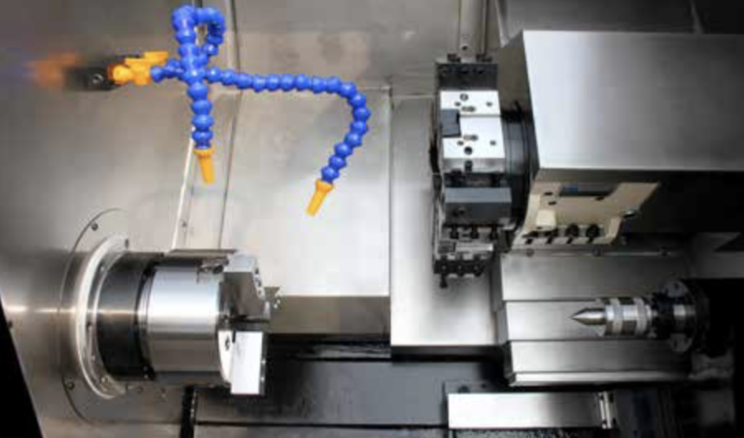

The turret with a gang-type tooling device can eliminate the tool exchange time and improve the working efficiency.

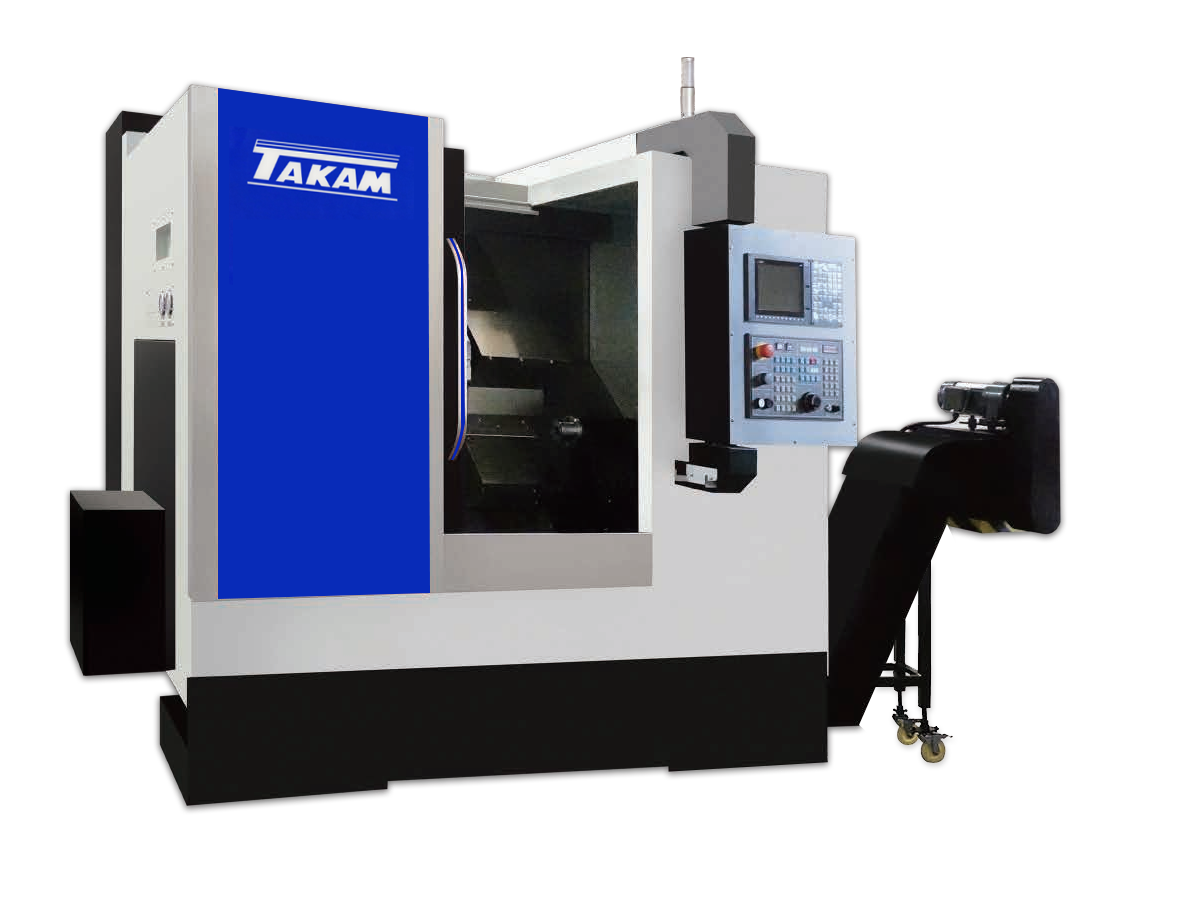

The 45- degree inclined working bed is designed with rigid mechanical construction and easy chip removal. This design resolved the difficulty of chip removal because of the combination of gang type and traditional turret.

CNC车削中心

This machine uses a linear guideway which can reduce friction, resistance, and effects of temperature change during axial quick movement. Also, it can result in high precision of machined products and a high capacity of machining output.

model
subject
ML-350
X / Z轴行程(mm)| X / Z Trave440/800
床台旋径 ( mm)|Swing Over Bed

φ560

往复台上旋径 ( mm ) | Swing Over Sizeφ350
最大加工直径(盘类)( mm ) | Max Turning Diameter(disc)φ420
最大加工直径(轴类)( mm ) | Max Turning Diameter(axis)φ350
最大加工长度(mm)|Max Turning Length750
两心间距(mm)| Distance Between Centers 900
油压夹头尺寸(in)| Power Chuck Size10”
最大棒材通孔直径(mm)| Max. Diameter Of Bar Boreφ75
主轴贯通孔直径(mm)| Diameter Of Spindle Bore φ91
主轴头形式(ASA)| Spindle Head TypeA2-8
主轴转速(rpm)| Spindle RPM3000
主轴马力(kw)| Spindle Motor11
主轴精度(mm)| Spindle Accuracy0.003
X / Z轴快速位移(m/min)| X / Z axis Rapid Traverse20/20
X、Z轴电机功率(kw)| X / Z axis Servo Motor1.8/2.5
刀具数(units)| Number of tools12(刀塔中心高125)
定位精度±(mm)| Position Accuracy0.005
重复定位精度±(mm)| Repeatability0.003
车刀尺寸(mm)| Turning Tool Size25X25
镗刀尺寸(mm)| Boring Tool Sizeφ40
尾座行程(mm)| Tailstock Travel700
顶心锥度(MT)| Quill TaperMT5
机床重量(KG)| Machine Weight(Little)4100
机床尺寸(mm)| Machine Size3800X1700X1950
